ok folks
this might seem like a silly question, but I believe my Maxi is stock standard
ie the trim is all original
Is there a way of telling what colour it is (other than grey) ??
Would this be decodable from the "Service Schedule Vehicle Data" information quite like paint colour ?
I would like to purchase a few parts etc and see some parts have the same part number but have options for colours
for example, top mount dash stowage compartment
2K5858329 - normal (grey ??)
2K5858329 75R - Anthracite
how would I know which colour I currently have and which colour I would need to order to continue with the existing trim I have ??
colour
-
DW2207
- Hyper Poster
- Posts: 887
- Joined: Tue Oct 01, 2019 8:49 am
- Engine size/power: 1.9 TDI (104bhp)
Re: colour
I believe caddys from 2004-2010 is art grey (lightly coloured)
2011-2015 anthracite
2015_2020 titan black
Sent from my SM-G981B using Tapatalk
2011-2015 anthracite
2015_2020 titan black
Sent from my SM-G981B using Tapatalk
-
stu_b
- Hyper Poster
- Posts: 1097
- Joined: Sat Mar 18, 2023 5:28 am
- Engine size/power: 1.6 CR TDI (75bhp)
Re: colour
thanks
I think I might have to get a pic of the inside tmrw when its light and post it
I think I might have to get a pic of the inside tmrw when its light and post it
-
Scoobysrt
- Hyper Poster
- Posts: 2415
- Joined: Mon Oct 19, 2020 7:58 pm
Re: colour
Things may be different over there but in the UK vw commercial will email you your build sheet at no cost, your paint code will be on that.
2016 Starlight blue highline 2.0 tdi - stainless side bars - DubUnit remap 190 bhp ish - st x lowering kit - golf R cadiz 18" wheels - rear wiper delete - ProVan600 interior led light - red painted calipers - Kenwood headunit - sequential side repeaters - vcds hex net pro
-
stu_b
- Hyper Poster
- Posts: 1097
- Joined: Sat Mar 18, 2023 5:28 am
- Engine size/power: 1.6 CR TDI (75bhp)
Re: colour
I have a breakdown of VIN and the spec sheet which looks like a DNA sample on the service handbook
But all the numbers mean zip to me
I wonder if the same "build sheet" is available in Australia ?
Would I ask for just that ?
Maybe I give them a call tmrw
But all the numbers mean zip to me
I wonder if the same "build sheet" is available in Australia ?
Would I ask for just that ?
Maybe I give them a call tmrw
-
Doc
- Not God, just a bellend
- Posts: 18787
- Joined: Thu Jan 01, 1970 1:00 am
- Engine size/power: 2.0TSI EA888 Gen3
- Location: Monaghan, Ireland & Derbyshire, UK
Re: colour
The sheet contains what are known as PR codes.
These can be decoded with the help of an online page you can find with your preferred search engine. Look for "VW PR decoder".
These can be decoded with the help of an online page you can find with your preferred search engine. Look for "VW PR decoder".
2013 Caddy with EA888 Gen3 2.0TSI DSG, Superplus MSP19 , Caddy4 rear lights, Polo GTI (mk7 style) steering wheel, Relentless Tuning front coilovers, Audi A6 S-Line front seats, Boxster fronts & GTI rear Brakes, 3D Colour Premium dash cluster, Caddy life arm rest, Motexion bulkhead, MIB head unit
All posts written by me are the intellectual property of the caddy2K forum and I do not consent to copying or redistribution of any sort
-
stu_b
- Hyper Poster
- Posts: 1097
- Joined: Sat Mar 18, 2023 5:28 am
- Engine size/power: 1.6 CR TDI (75bhp)
Re: colour
Thanks Doc
I shall give that a try in the morning
I shall give that a try in the morning
-
stu_b
- Hyper Poster
- Posts: 1097
- Joined: Sat Mar 18, 2023 5:28 am
- Engine size/power: 1.6 CR TDI (75bhp)
Re: colour
Doc

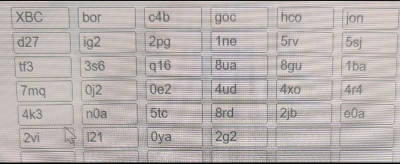

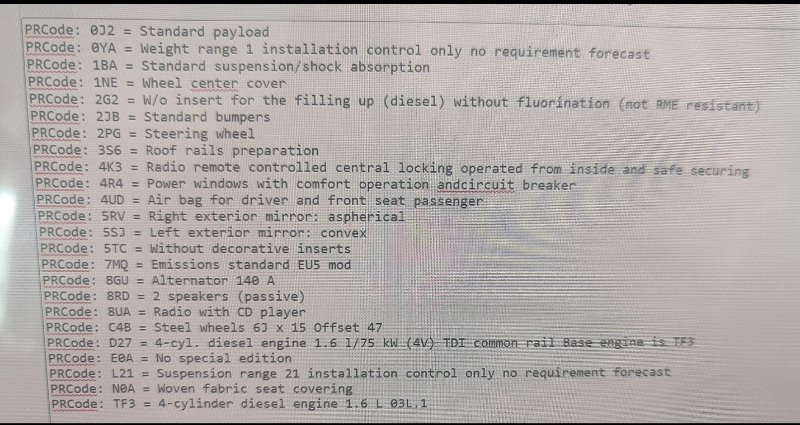

I have given that a fair nudge and this is what it comes back with .... Some make sense while the others don't
Doesn't bring up all the codes tho - 24 of 34 listed ?

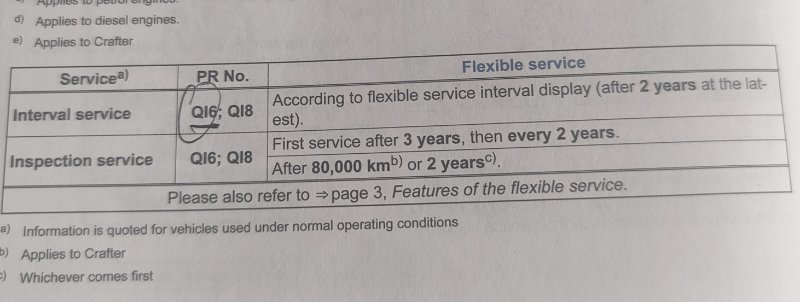

I know one that's not on the breakdown list "Q16' is about service
Very very interesting
Can you shed any more light on these codes listed and the ones not listed
I have given that a fair nudge and this is what it comes back with .... Some make sense while the others don't
Doesn't bring up all the codes tho - 24 of 34 listed ?
I know one that's not on the breakdown list "Q16' is about service
Very very interesting
Can you shed any more light on these codes listed and the ones not listed
- Attachments
-
-
-
-
petrev
- Hyper Poster
- Posts: 2306
- Joined: Sun Apr 26, 2015 1:41 pm
- Engine size/power: 1.4TSI
-
stu_b
- Hyper Poster
- Posts: 1097
- Joined: Sat Mar 18, 2023 5:28 am
- Engine size/power: 1.6 CR TDI (75bhp)
Re: colour
thanks petrev
I have had a look and it has helped with a few of the missing codes
cheers
I have had a look and it has helped with a few of the missing codes
cheers
-
petrev
- Hyper Poster
- Posts: 2306
- Joined: Sun Apr 26, 2015 1:41 pm
- Engine size/power: 1.4TSI
Re: colour
Yes, and sometimes even with the VW description of the code it is still a bit of a mystery !
-
stu_b
- Hyper Poster
- Posts: 1097
- Joined: Sat Mar 18, 2023 5:28 am
- Engine size/power: 1.6 CR TDI (75bhp)
Re: colour
turns out my Caddy is anthracite / grey (inside)
Paint code is Candy white - nothing fancy there 1!
I am yet to discover what the 2CH A82 means ??
75kw (self explanatory)
CRDSG5 common rail diesel ?? - whats the rest mean ??
CAYD - engine type
MHZ - no ideas ??
anyone got any ideas ??
Paint code is Candy white - nothing fancy there 1!
I am yet to discover what the 2CH A82 means ??
75kw (self explanatory)
CRDSG5 common rail diesel ?? - whats the rest mean ??
CAYD - engine type
MHZ - no ideas ??
anyone got any ideas ??
-
Netz
- Caddy2k Groupie
- Posts: 1
- Joined: Wed Jan 18, 2023 7:42 pm
- Engine size/power: 1.6 CR TDI (102bhp)
Re: colour
MHZ - Gearbox Code
-
FishermansFriend
- Hyper Poster
- Posts: 1034
- Joined: Wed Jun 17, 2020 12:10 pm
- Location: Ireland Dublin
Re: colour
This is a handy website for translating PR codes https://www.oemvwshop.com/pr-code-decoder/
